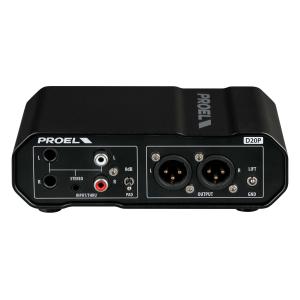

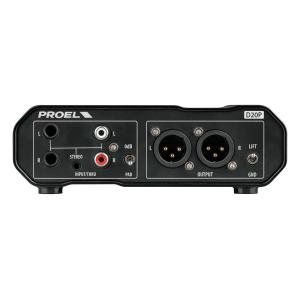

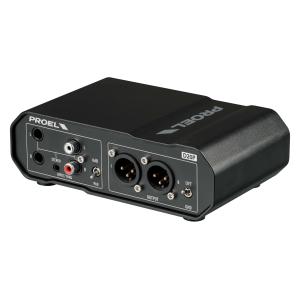

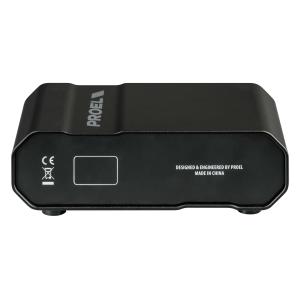

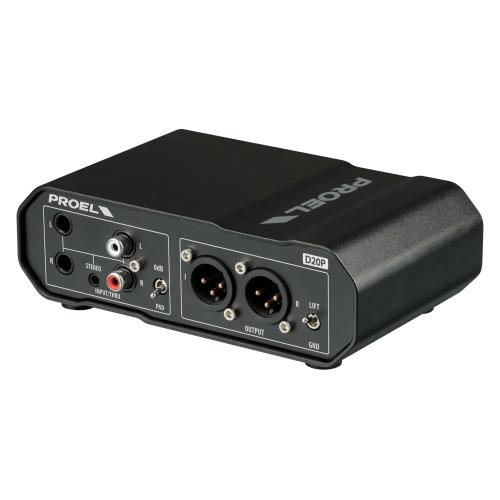

PROEL D20P DI BOX PASSIVA 2 CANALI

Descrizione

DIRECT INJECTION BOX STEREO PASSIVA

DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.D20P is a STEREO passive direct box with transformers and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible. D20P features two 1/4" jack to connect a stereo keyboard, or two RCA to connect a DJ console, or a 3,5mm mini-jack to connect a personal computer, for maximum flexibility without the need of special adapters.
Caratteristiche

Input Section
Connectors2 x 1/4" JACK, 2x RCA unbalanced, 1x Stereo Mini JACK
Input Impedance>250 Kohm (no PAD) / 10 Kohm (with PAD)
Max Input Level+20 dBu (no PAD) / +40 dBu (with PAD)
Output Section
Connector2x XLR-M balanced
Min Load Impedance600 Ohms or greater
OutputTransformer Balanced (fully isolated)
Max Output Level0 dBu
System Performance
Distortion THD+N 0dBu< 0.007 %
Frequency Response10 Hz to 100 kHz (-3 dB)
Insertion Loss-20 dB
General
ControlsPAD -20 dB, GND LIFT
Dimensions (W x H x D)160 x 52 x 106 mm (6.30 x 2.05 x 4.17 ")
Weight0,59 Kg
